| Part Number | BAW56T-7-F |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | DIODE ARRAY GP 85V 75MA SOT523 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Quantity Available | In Stock |
| Datasheets | BAW56T-7-F.pdf |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 50mA |
| Voltage - DC Reverse (Vr) (Max) | 85V |

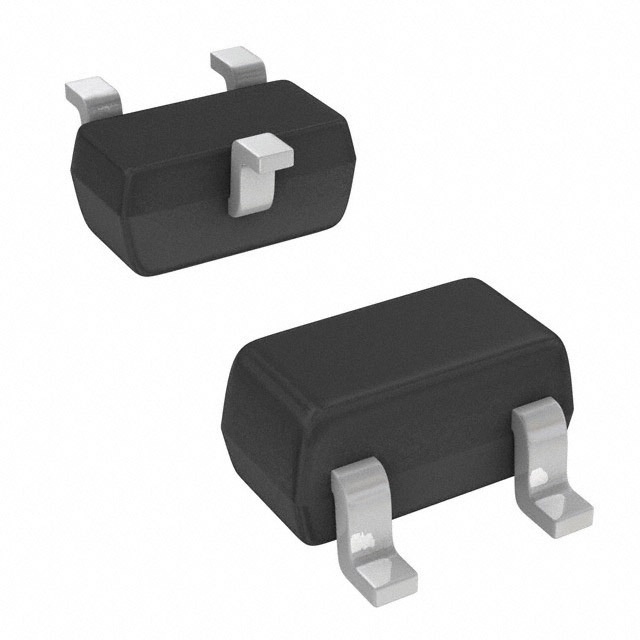

| Supplier Device Package | SOT-523 |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Series | - |
| Reverse Recovery Time (trr) | 4ns |
| Packaging | Tape & Reel (TR) |
| Package / Case | Contact Email:sales@antdic.com |
| Other Names | BAW56T-FDITR BAW56T7F |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Standard |
| Diode Configuration | 1 Pair Common Anode |
| Detailed Description | Diode Array 1 Pair Common Anode Standard 85V 75mA (DC) Surface Mount SOT-523 |
| Current - Reverse Leakage @ Vr | 2µA @ 75V |
| Current - Average Rectified (Io) (per Diode) | 75mA (DC) |
| Base Part Number | BAW56T |
