| Part Number | RB558WTL |
|---|---|
| Manufacturer | LAPIS Semiconductor |
| Description | DIODE ARRAY SCHOTTKY 30V EMD3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Quantity Available | In Stock |
| Datasheets | RB558WTL.pdf |
| Voltage - Forward (Vf) (Max) @ If | 490mV @ 100mA |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Supplier Device Package | EMD3 |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Series | - |
| Packaging | Tape & Reel (TR) |

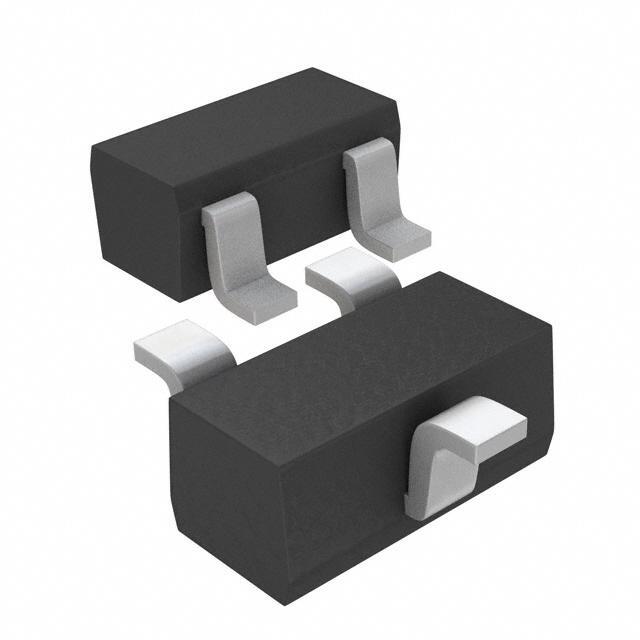

| Package / Case | SC-75, SOT-416 |
| Other Names | Contact Email:sales@antdic.com |
| Operating Temperature - Junction | 125°C (Max) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Series Connection |
| Detailed Description | Diode Array 1 Pair Series Connection Schottky 30V 100mA Surface Mount SC-75, SOT-416 |
| Current - Reverse Leakage @ Vr | 10µA @ 10V |
| Current - Average Rectified (Io) (per Diode) | 100mA |
| Base Part Number | RB558WTL |
