| Part Number | STW88N65M5-4 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | |
| Lead Free Status / RoHS Status: | |
| Quantity Available | In Stock |
| Datasheets | STW88N65M5-4.pdf |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±25V |
| Technology | MOSFET (Metal Oxide) |

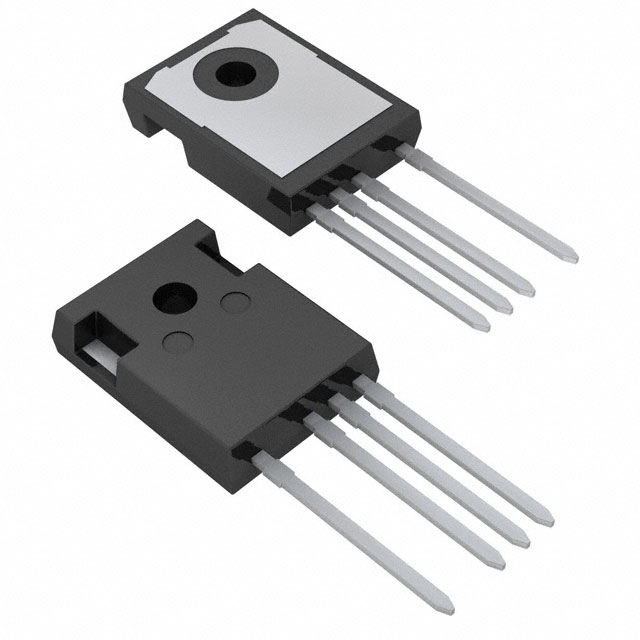

| Supplier Device Package | TO-247-4L |
| Series | MDmesh™ M5 |
| Rds On (Max) @ Id, Vgs | 29 mOhm @ 42A, 10V |
| Power Dissipation (Max) | 450W (Tc) |
| Packaging | Contact Email:sales@antdic.com |
| Package / Case | TO-247-4 |
| Other Names | 497-16334-5 |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 8825pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 204nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 650V |
| Detailed Description | N-Channel 650V 84A (Tc) 450W (Tc) Through Hole TO-247-4L |
| Current - Continuous Drain (Id) @ 25°C | 84A (Tc) |
